The short answer
- The frames are the same. Both the M10 AXS and the M30 are built on Orbea's OMR carbon. The lighter OMX frame starts higher up the range, at M-Pro.
- Both have 120 mm of travel, front and rear. Same geometry, same suspension design.
- So the roughly R54,000 between them is entirely components — electronic suspension, wireless shifting, a power meter, wheels and brakes.
- The M10 AXS is a claimed 10.8 kg. The 9.6 kg figure you'll see quoted is a different, higher-spec bike — not either of these.
- Tyres, saddle and dropper are identical on both bikes.
- We have one of each in the shop. Come and lift them both before you decide.

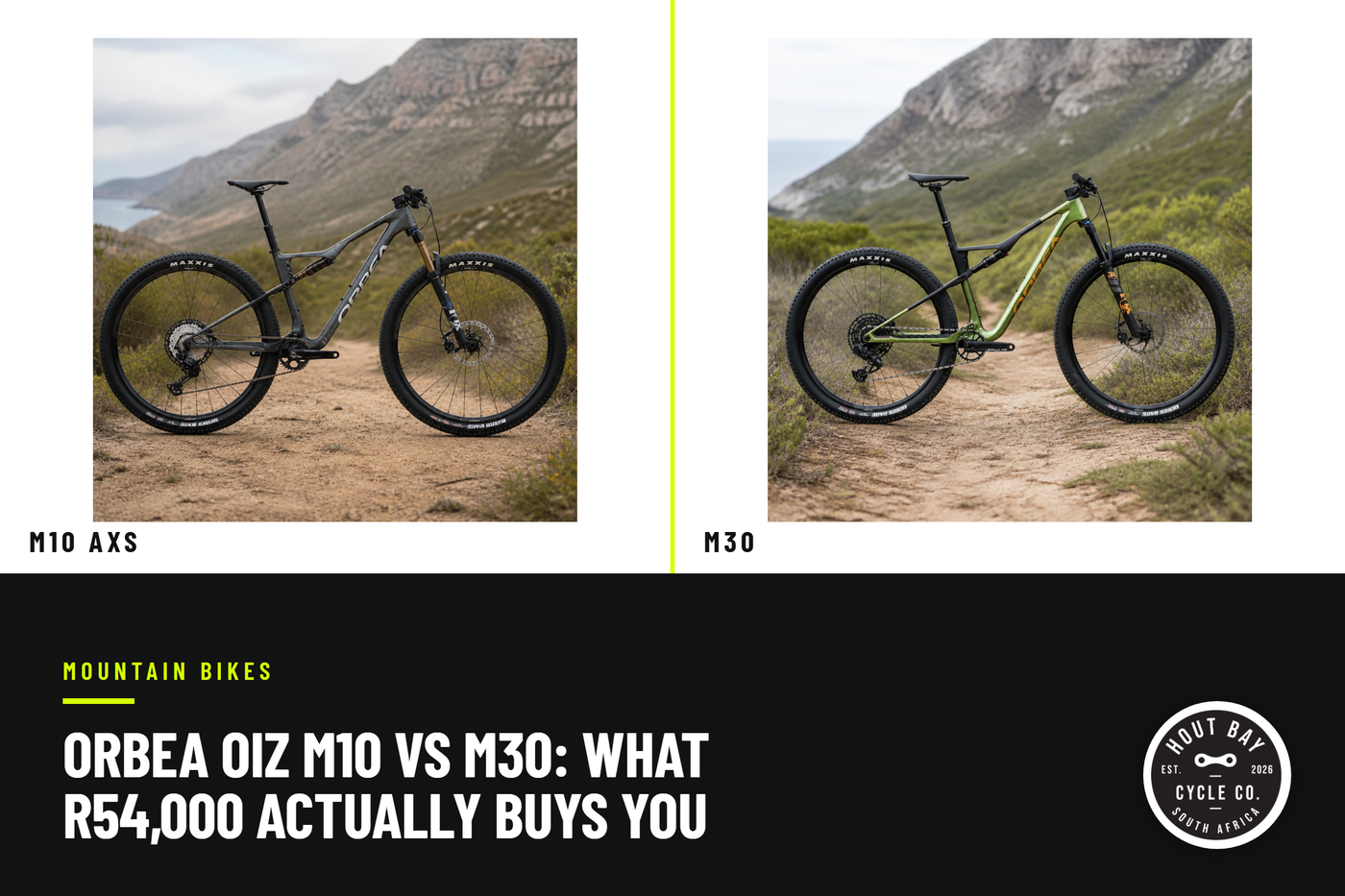

Two Orbea Oiz on the floor, about R54,000 apart, and the same question every time: what does the extra actually buy? The honest answer surprises most people, so let's start there.
The frames are identical
Orbea builds the Oiz in two carbon grades. OMX is the lighter, stiffer one. OMR is the other one — Orbea's own words are that it "delivers the same level of strength and structural performance, but will not be as light as the OMX".
Here's the part that matters. Look at how Orbea splits the 2026 range: the OMX frame goes on the M-Ltd, M-Team Factory, M-Team AXS and M-Pro. Everything below that — M10 AXS, M10, M20 and M30 — is OMR. Spec sheets for the M10 confirm it in as many words: "Orbea Oiz Carbon OMR" — and Orbea publishes the identical frame string on the M30.
Both bikes in our shop are OMR. Same carbon, same mould, same 120 mm of travel front and rear. If you were expecting the pricier bike to have a fundamentally better frame under it, it doesn't.
Same frame, same travel. The money goes on everything bolted to it.
That's not a criticism of either bike. It's the most useful thing to know before you spend, because it tells you exactly where to look.
What they actually weigh
You'll see 9.6 kg quoted for the Oiz all over the internet. It's a real number and it's the top-tier cross-country build — not the bikes on our floor.
The figure for the bike we actually stock is 10.8 kg for the M10 AXS, from the same test. Orbea doesn't publish a complete-bike weight for the M30, and I'm not going to invent one — but it will be heavier again, because it's the same frame carrying cheaper parts.
Worth knowing
A kilogram matters far less than most people think, and far less than tyre choice. On the Suikerbossie drag, the difference you feel between these two bikes is mostly the wheels and rubber, not the number on the scale.
So where does R54,000 go?
Into the parts. Specifically:
The groupset
The M30 runs Shimano Deore 12-speed on a cable. The M10 AXS runs SRAM GX Eagle AXS — wireless electronic. No gear cable, no housing, and no shifts drifting out of adjustment as a cable stretches and settles.
The build mixes tiers, which is worth knowing: the derailleur is GX, but the crank is a step up — an X0 Eagle AXS with a power meter built into it. If you train to numbers, that's real value, and it saves you buying one later. If you don't, it's a feature you'll never switch on.
Suspension
Both run RockShox SID at 120 mm, but at different levels. The M30 gets a SID Select with a three-position lever — the OC Squidlock, which works fork, shock and dropper off one remote. The M10 AXS gets SID Ultimate with Flight Attendant: the electronic version, where sensors read the terrain and firm the suspension up or open it out for you, several times a second, without you touching a lever.
That is the biggest functional difference between these two bikes, and it matters more than the weight does.
Wheels and brakes
The M10 AXS gets Oquo MP30TEAM wheels and four-piston SRAM Motive brakes — which take SRAM’s large pad. The M30 gets alloy wheels and Shimano MT600s. Wheels change how a bike feels more than almost anything — and they're the upgrade you can do later, which is the whole argument for the M30.
What you don't pay extra for: both bikes come on the same Maxxis Rekon Race 2.40" tyres, the same Fizik Argo X5 saddle and the same OC MC22 dropper post.
Which one should you buy?
If you asked me across the counter, here's how I'd split it.
Go M10 AXS if you want the complete thing from day one and you'll use the electronic shifting. You're paying for finish and convenience on a frame you'd have got anyway.
Go M30 if you'd rather have the same frame, the same travel, and R54,000 still in your pocket. Put a fraction of it into tyres that suit the trails you actually ride and a proper setup session, and you'll close most of the real-world gap.
That's not me talking you out of the expensive bike. It's what I'd tell a mate. If the electronic shifting is what you want, buy it and enjoy it — just buy it knowing what it is, rather than thinking you're buying a better frame.
The thing neither of us can settle over the internet is fit. Reach and saddle height change how an Oiz rides more than any of this, and a size Large that's nearly right will annoy you for years. Both bikes are here — come and sit on them.
Common questions
Do the M10 and M30 have the same frame?
Yes. Both are Orbea's OMR carbon with 120 mm of travel front and rear. The lighter OMX frame starts at M-Pro, above both of these.
How much does the Orbea Oiz M10 weigh?
The M10 AXS is a claimed 10.8 kg. The 9.6 kg figure that circulates online is the top-spec race build, not this one — worth knowing before you compare it against something else on paper.
Is the Orbea Oiz an XC or a trail bike?
Cross-country, first and last. It has 120 mm of travel front and rear, which is generous for XC and lets it handle rougher ground than an old-school race bike, but it's built for going up fast. If you want something that prioritises the way down, it's the wrong bike.
Is the M30 fast enough for racing?
It's the same frame and the same travel as the M10, so the platform is identical. Set it up properly with good tyres and it is absolutely a race bike.
What does AXS actually mean?
It's SRAM's wireless electronic shifting. There's no gear cable — the derailleur has a battery and shifts on a radio signal, so it doesn't drift out of adjustment the way a cable does.
Can I upgrade an M30 later?
Yes, and that's the sensible route. Wheels, tyres and drivetrain parts are all straightforward swaps. The frame is the thing you can't change, and it's already the same one.
Which is better on Chapman's Peak and the local trails?
Honestly, whichever fits you properly and has the right rubber on it. Both climb well. If you're descending hard and often, spend on brake pads and rotors and good tyres before you spend on the frame tier.
Do you have both in stock?
One of each, right now — an M10 AXS in Large and an M30 in Medium. Everything on our floor is Orbea, and there's one of each build, so if you want to compare them side by side it's worth phoning ahead.
